Preparation

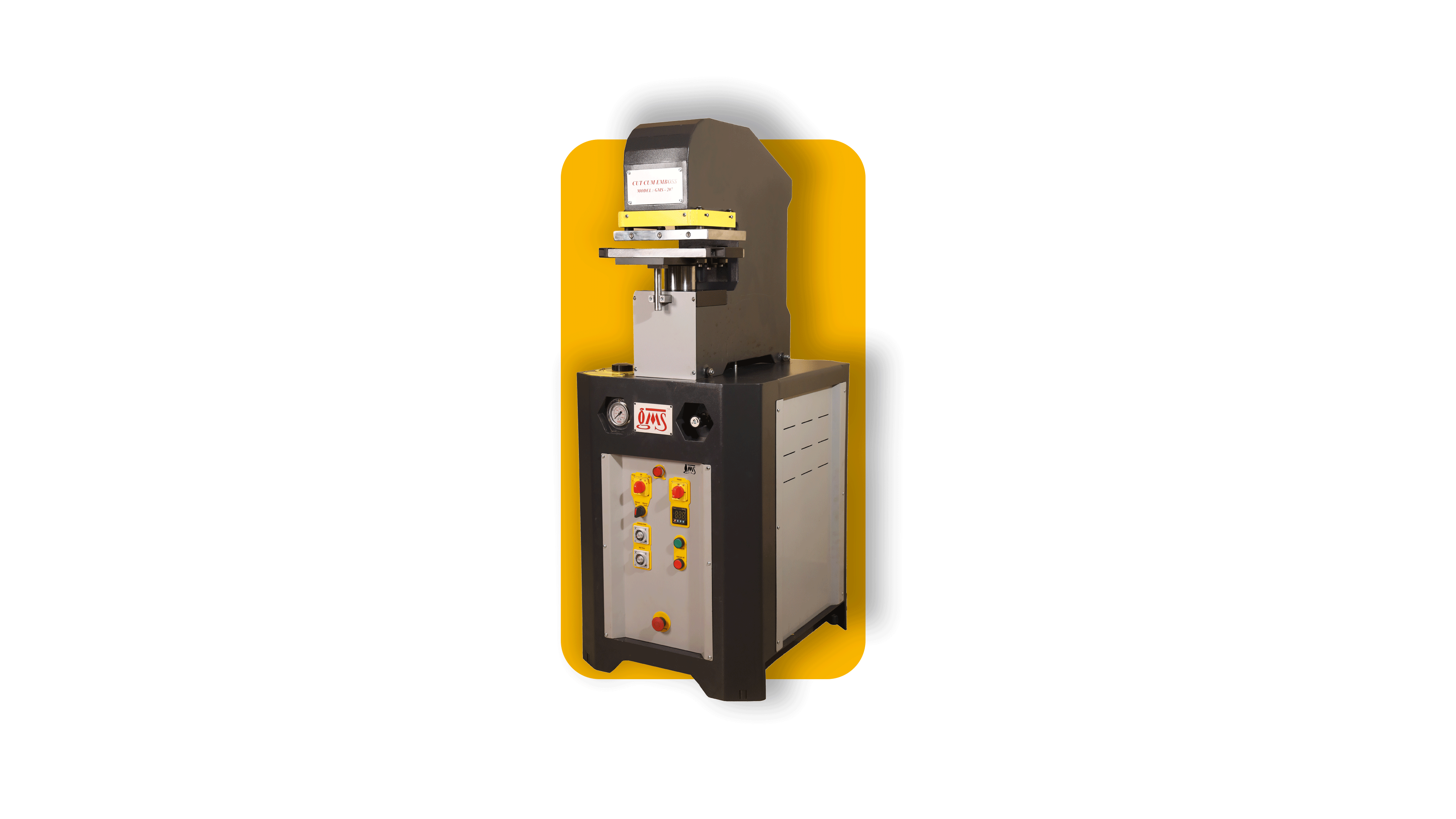

GMS - 207
Cut and Emboss
-
Table Size;A4 (210mm x 300mm)
-
415 volt operated
-
Rigid construction
-
Hydraulic version
-
Regulator for pressure control with gauge
-
Electronic control for process time
-
Mechanical stopper to control Embossing depth
-
Kiss cutting concept to minimise noise level and no impact effect on shop floor
-
Heater power : 1650 watt
-
Mechanical depth adjuster accuracy : 0.025mm
-
Parallelism adjuster for top and bottom die fixing plate
APPLICATION:
-
Embossing upto A4 size
-
Cut cum emboss (hard tool)
-
For recutting dies with safety bushes
-
Tussel Cutting
-
Clicking dies with fibre board
-
Vamp Perforation

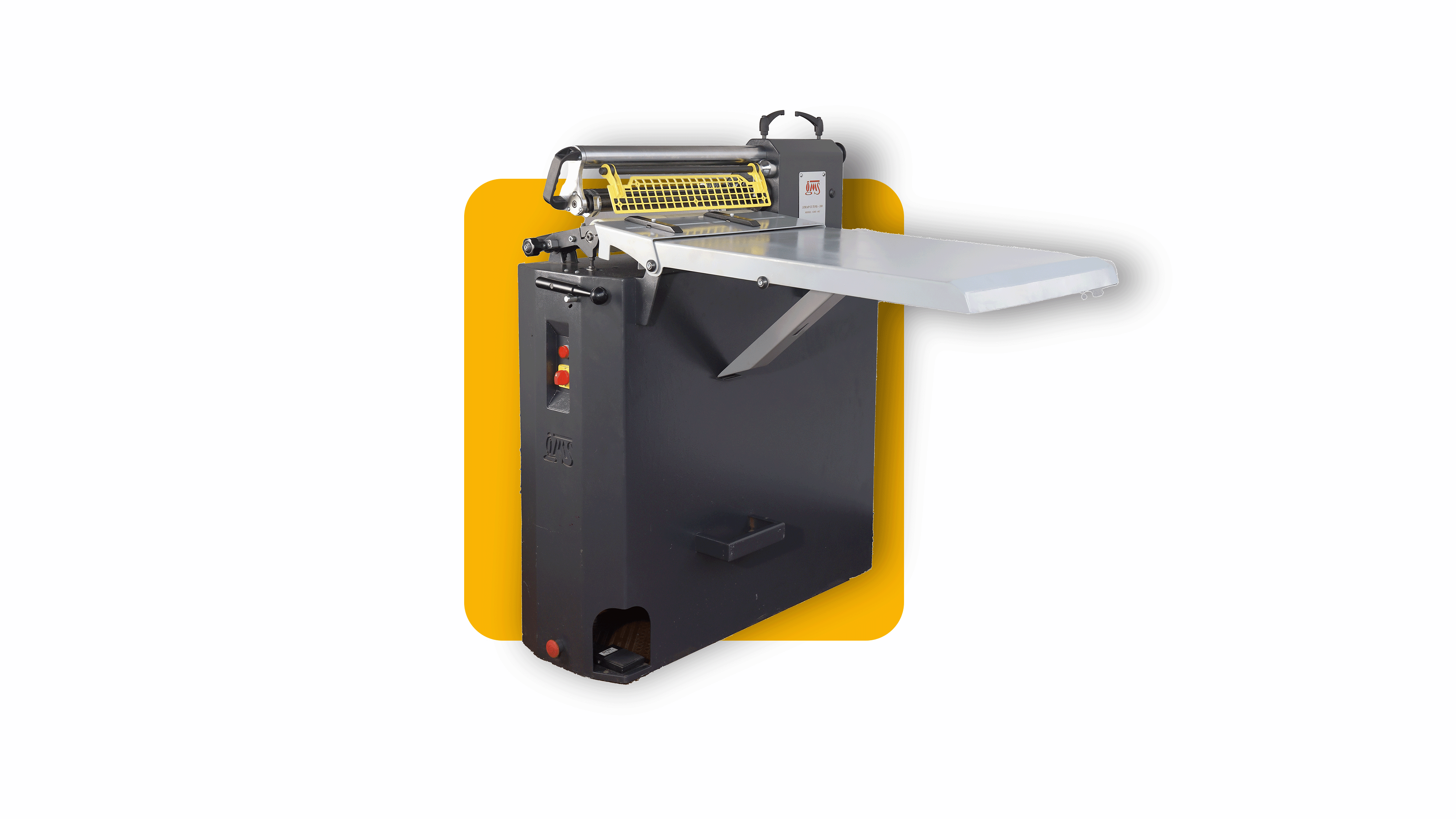

GMS - 602
-
Strap cutting width up to 300mm
-
Collapsible table for hassle less material feeding
-
Fiber roller can be adjusted horizontally upto 10mm
-
Top support shaft can be shifted for visibility while fixing the knife and spacer
-
Fiber roller dia 75mm can be used multiple times after shaving until 60mm
-
Our unique design avoids bending of the knife fixing shaft, as the knife fixing nut can be loosened by a spanner before detaching the top support shaft
-
-
-
Sizes available: 500mm width
-

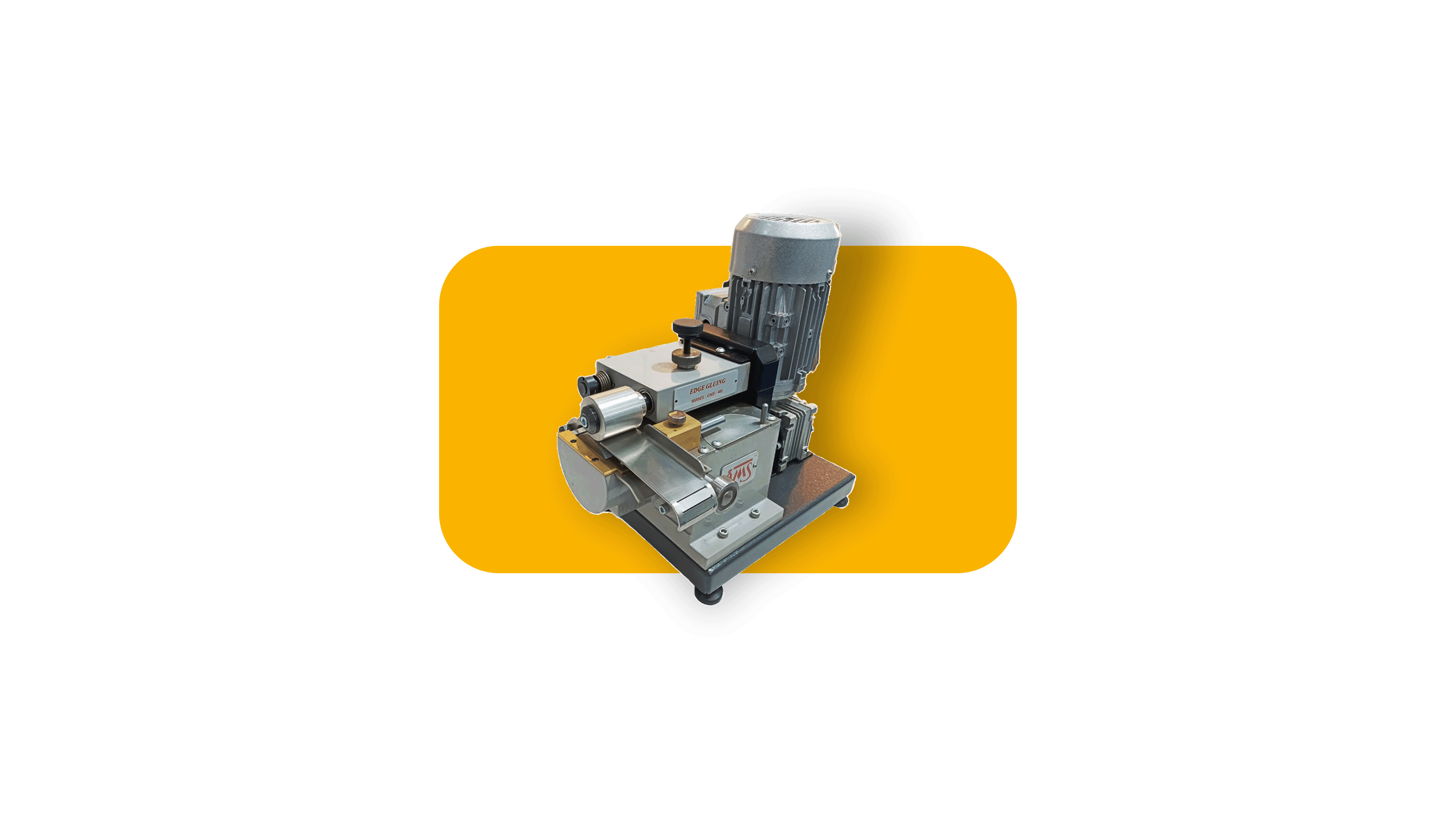

STRAP CUTTING MACHINE GMS - 604
Strap Cutting-300
GMS - 703
Roller Plating Machine
-
The 450mm width diamond polished roller is used for plating purpose.
-
Provided with speed variator
-
Available roller sizes - 600mm, 900mm
-
Pneumatically operated
-
Operating pressure -5 bar
-
Temperature controller to control temperature
-
Gap between rollers can be adjusted finely from 0.5mm - 5mm
GMS - 406
-
Pneumatically operated
-
Teeth removal of 30mm for common cutting
-
Teeth removal of 15 mm for side cutting
-
Tool can be easily changed
-
Scraps completely removed from the machine
-
Tools available for no.3 and no.5 zip
Zip Teeth Remover
GMS - 401
Edge Gluing
-
Portable
-
415V Operated
-
Robust Construction
-
Edge can be glued from 2mm to 40mm
-
Glue layer thickness can be adjusted finely
-
Skived edges can also be glued
